Connect to Robot

Download and install App

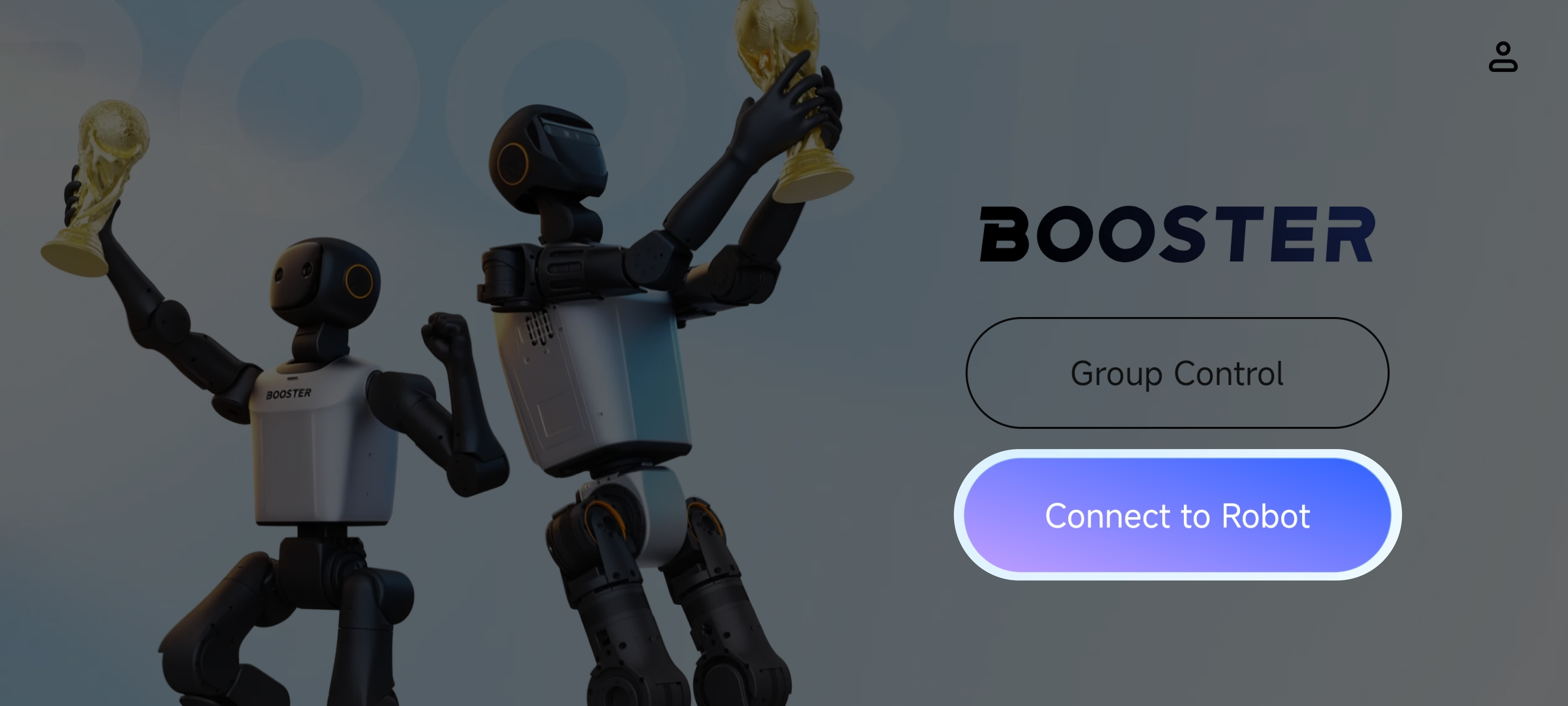

After signing up and signing in, tap "Connect Robot" on the home page.

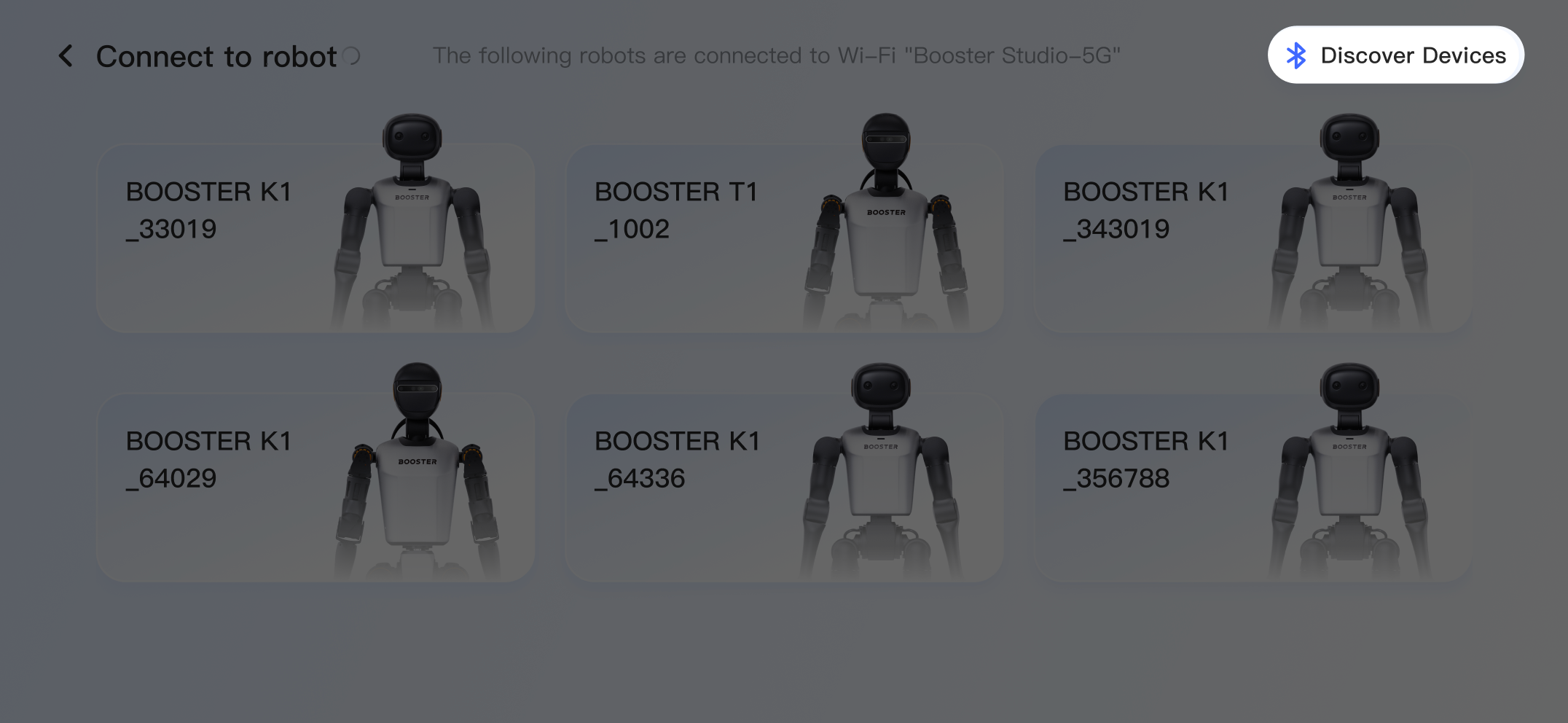

A list of robots on the same network as your phone appears below. If the robot you want to connect is not listed, tap "Discover Devices".

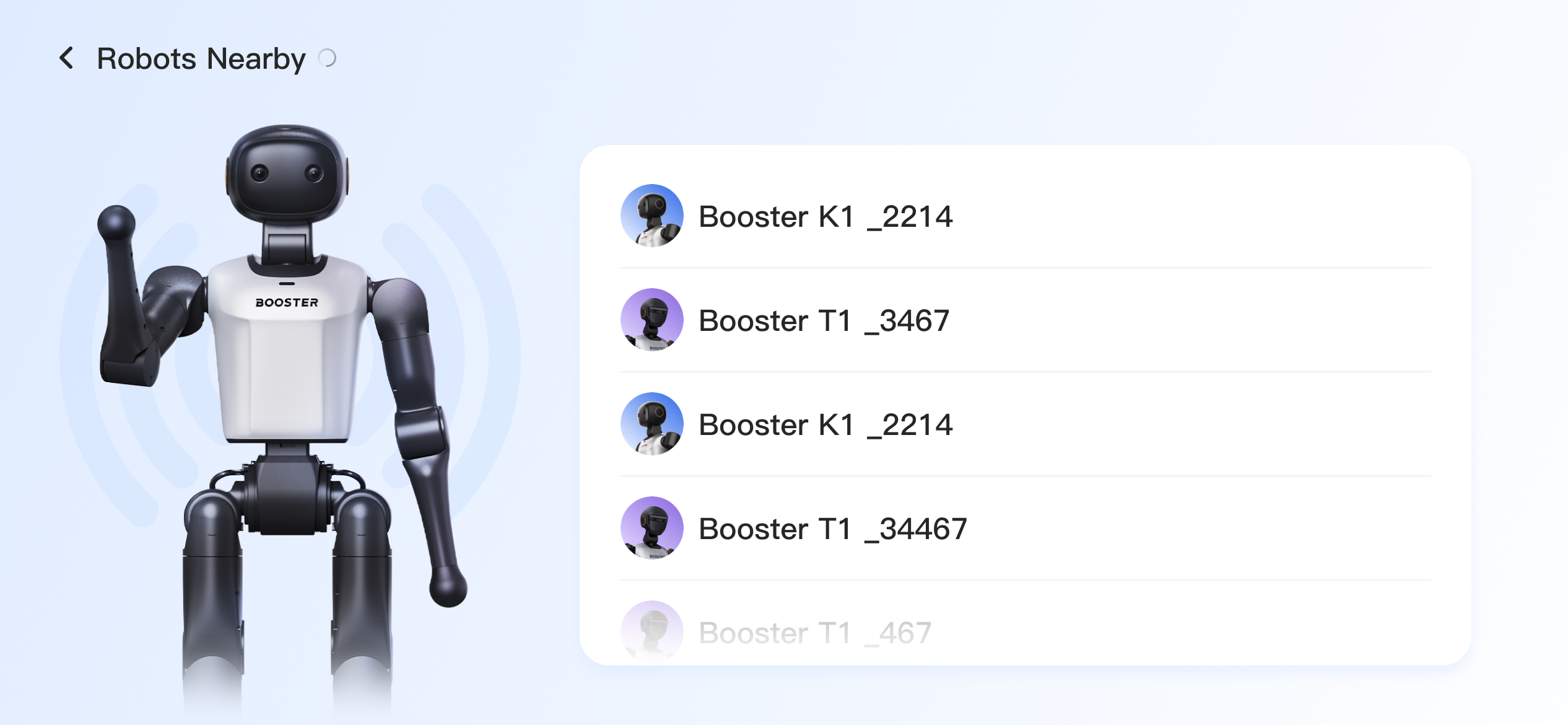

In the "Discover Nearby Robots" list, select your robot.

Bluetooth and Location must be enabled, and the app must be granted the required permissions.

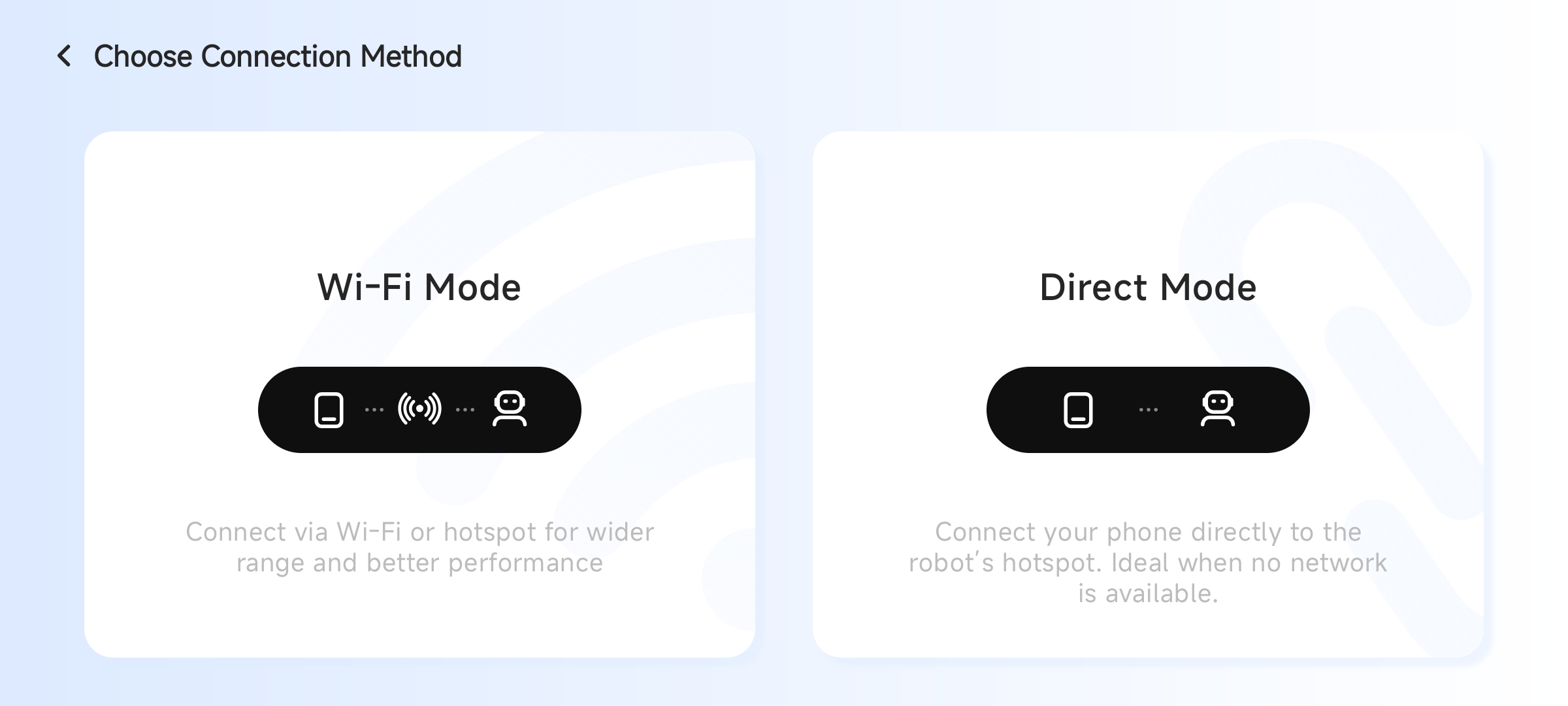

Two connection modes are available:
- Wi-Fi connection mode: connect the robot to the same Wi-Fi network as your phone, or connect the robot to your phone hotspot. This mode is suitable when network conditions are good.
- Direct connection mode: connect your phone to the robot hotspot. This mode is suitable when no network is available and your phone is close to the robot.

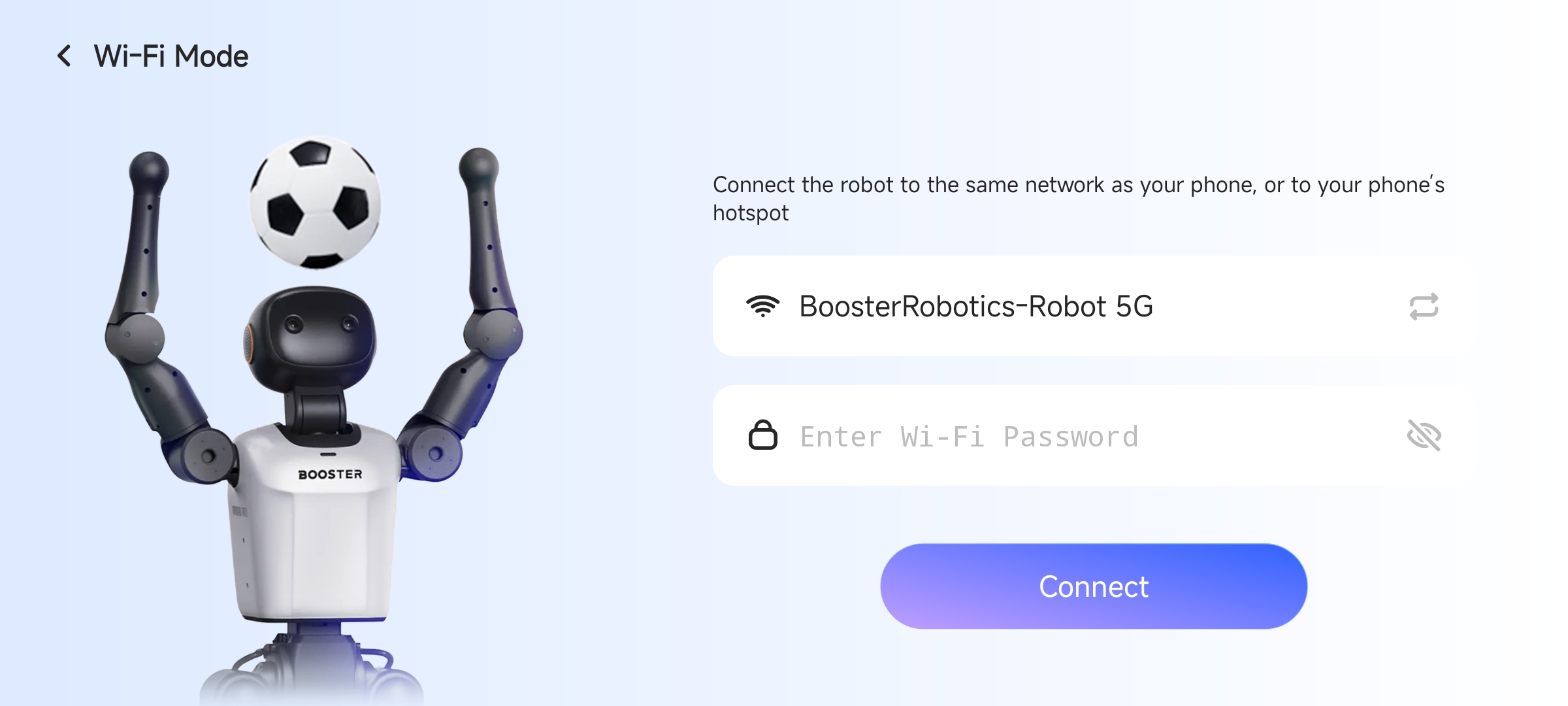

If you choose Wi-Fi connection mode, select the same network as your phone, or your phone hotspot, from the Wi-Fi list. Enter the password and confirm the connection. If the connection succeeds, the robot control page opens automatically.

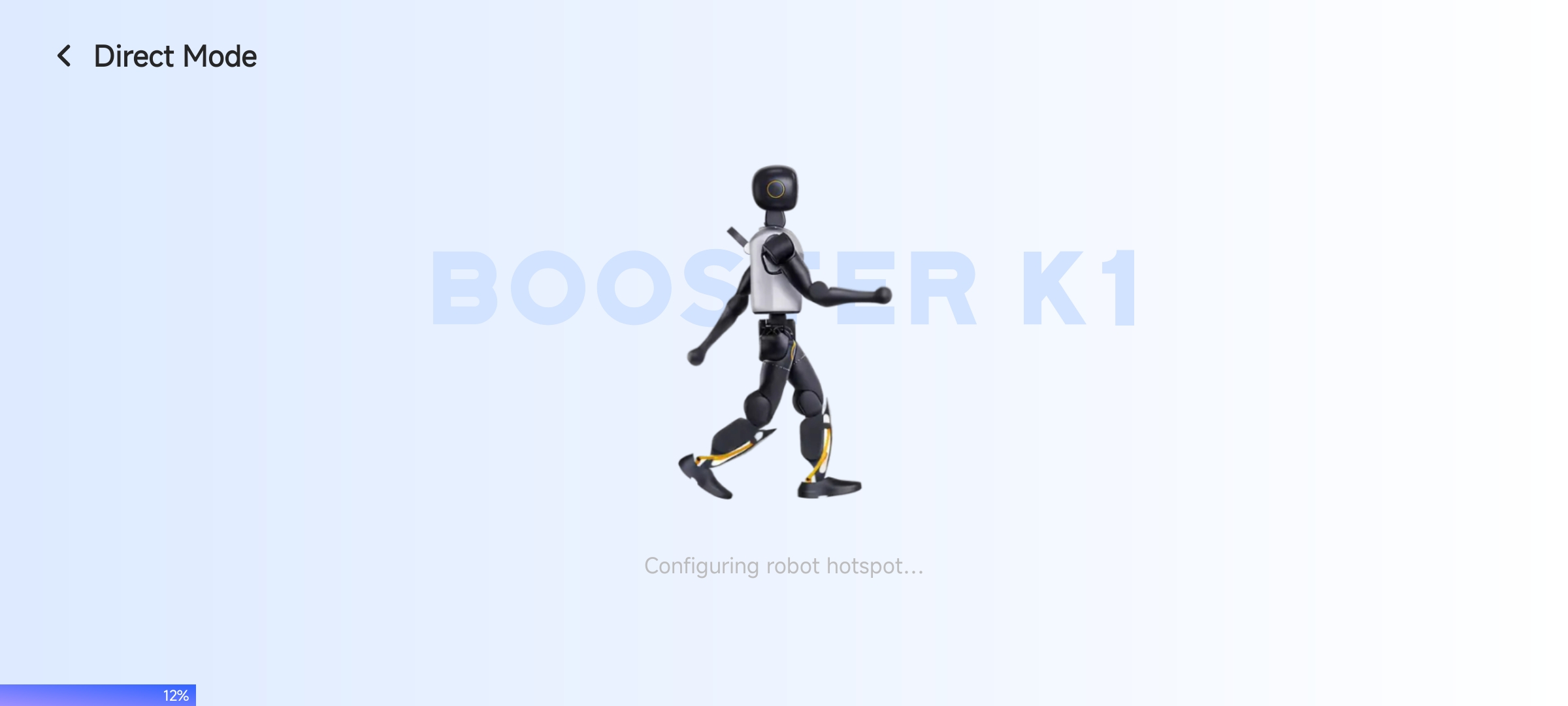

If you choose direct connection mode, the robot control page opens automatically after loading.

After connecting to the robot with an Ethernet cable, configure the wired network settings.

address: 192.168.10.10
netmask: 255.255.255.0
gateway: 192.168.10.1

Reference steps for fixed IP configuration:

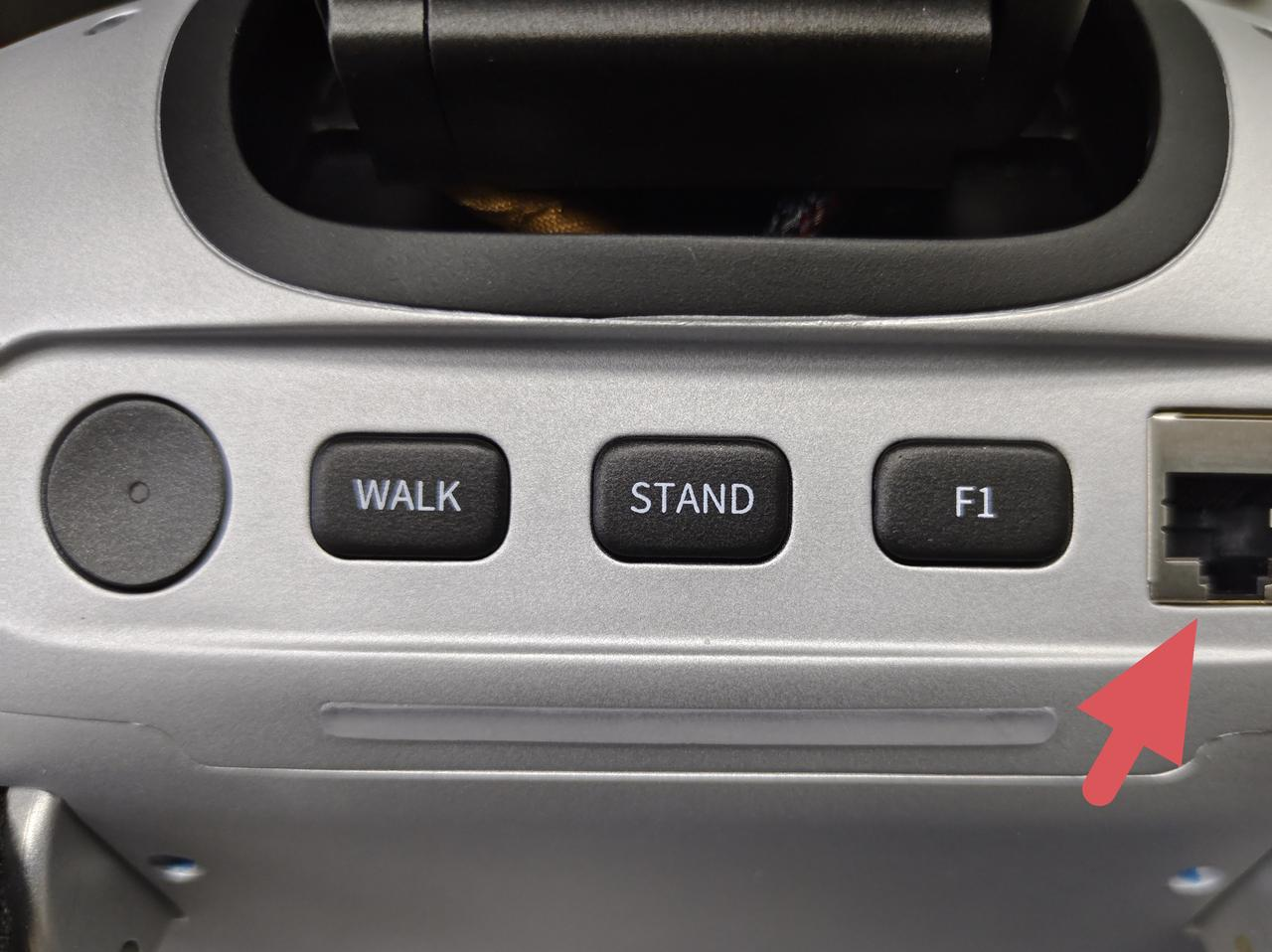

Use an Ethernet cable to connect the development computer and the robot. The robot's Ethernet port is shown in the figure.
Log in to the robot with SSH.

Open a command-line tool (Terminal) and enter the following command:

# Log in to the robot through a direct Ethernet connection
ssh booster@192.168.10.102
# Initial password: 123456

After connecting to the robot through the app and configuring Wi-Fi for the robot, you can see the robot's IP address.xxx.xxx.xxx.xxx
Log in to the robot with SSH.

# Log in to the robot through the wireless network
ssh booster@xxx.xxx.xxx.xxx
# Initial password: 123456
