Introduction​

When the robot has issues and you need remote assistance, follow these steps to get remote support from our staff.

Information to Send to Technical Support​

  • Device ID and one-time password.
  • The robot's current status: whether it can power on, whether it can connect to the network, and its current mode.
  • Symptoms: for example, unable to walk, abnormal App connection, upgrade failure, etc.
  • The time the issue occurred and the operation you were performing at the time.
  • Whether logs have been uploaded, or exported by yourself via terminal.

Remote Assistance Procedure​

💡

You can choose from the following two remote assistance methods:

  1. Connect your personal computer to the robot via SSH; technical support can then connect to your computer via remote desktop and subsequently to the robot via SSH.
  2. Install remote desktop software on the robot; you can use a display and keyboard/mouse to open the remote desktop software, allowing support personnel to connect directly to the robot.

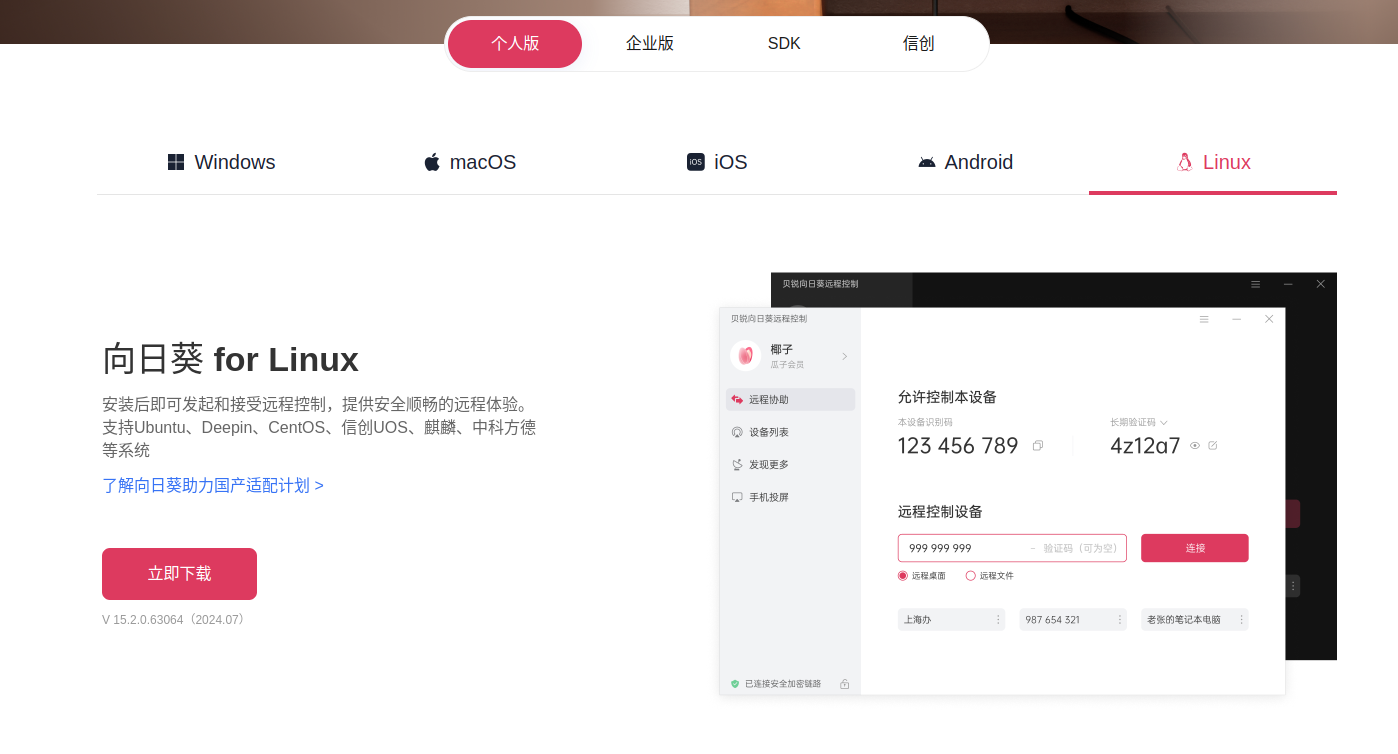

  1. Download the remote desktop software: https://sunlogin.oray.com/download

    1. Choose the personal edition.
    2. Select the corresponding operating system based on your device and click download.


  1. Install the remote desktop software and provide your Device ID and one-time password to technical support.

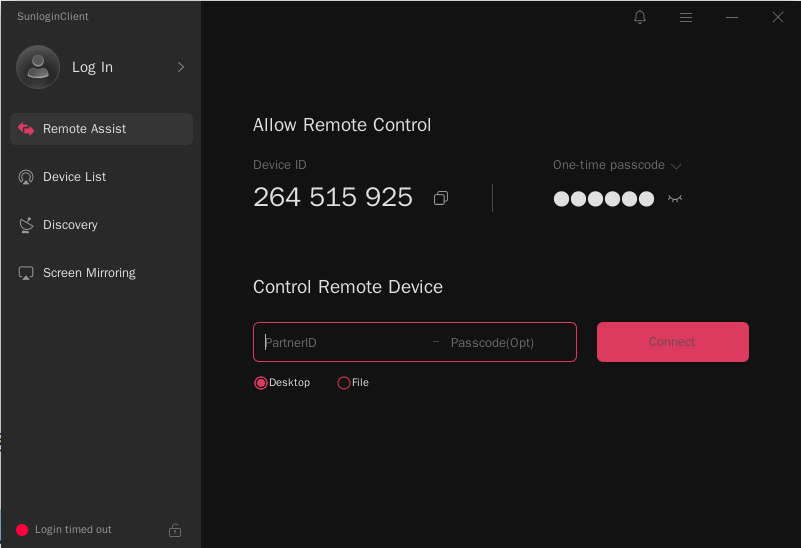

    1. After installation, the software interface will appear as follows:


    2. Click the eye icon below "One-time passcode" to display the one-time password. Then copy the "Device ID" and "One-time passcode" and provide them to our technical support team.

  2. Once done, technical support can connect to the robot via remote desktop and begin troubleshooting.
